Fridge Defrost Timer with Solar Trigger Option

From OpenCircuits
Jump to navigation Jump to search


This fridge defrost timer is triggered from my solar panel system so the fridge defrost cycle will run only when I have excess power.

It can be triggered from any 7 to 25vdc signal. I used the battery vent fan signal from my Outback Battery charger.

It powers itself from the signal or from a micro-amp parasitic source. I did not want to use a power adapter which wastes power all day and is too big for the container. had a key part: cpc1030N, which is a surface mount Clare opto-isolated relay 0.85mA 1.4 input, controlling 120vac 120mA . and the prototyping board.

The two 10 farad super capacitors are $4 each at part #589-1002-ND. Project box: #SR123-IA-ND. Don't use Nichicon. They lose charge too quickly. The relay is: JQX-13F (be sure to select the 120vac coil JQX-13F A110-2Z1) $7.

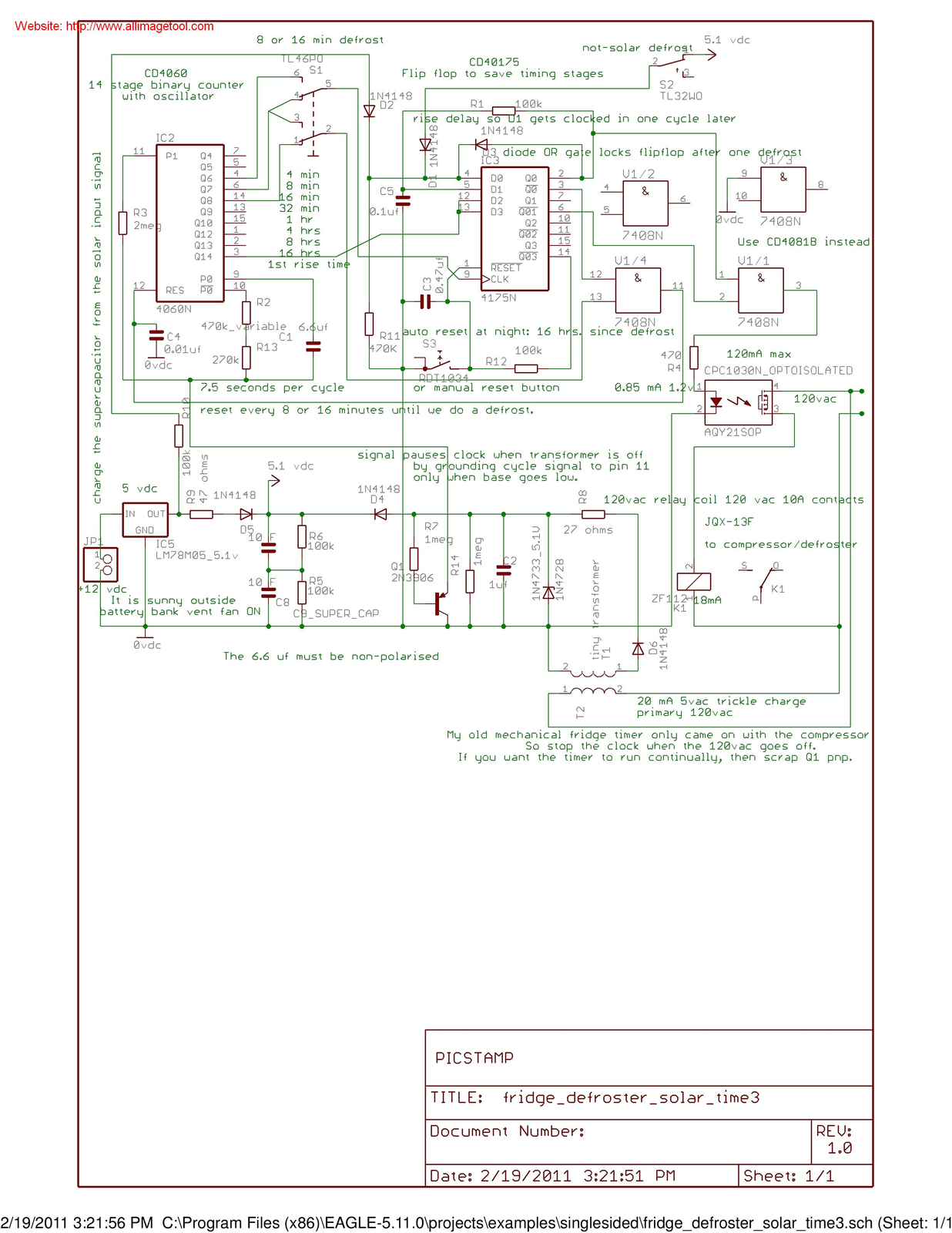

circuit: board etch pattern:

Later I discovered my mechanical timer only ran when the compressor was on. Plus, I added capacitors on the chip reset pins to stop electrical interference triggering false resets. So here is a revised schematic for that kind of defrost:

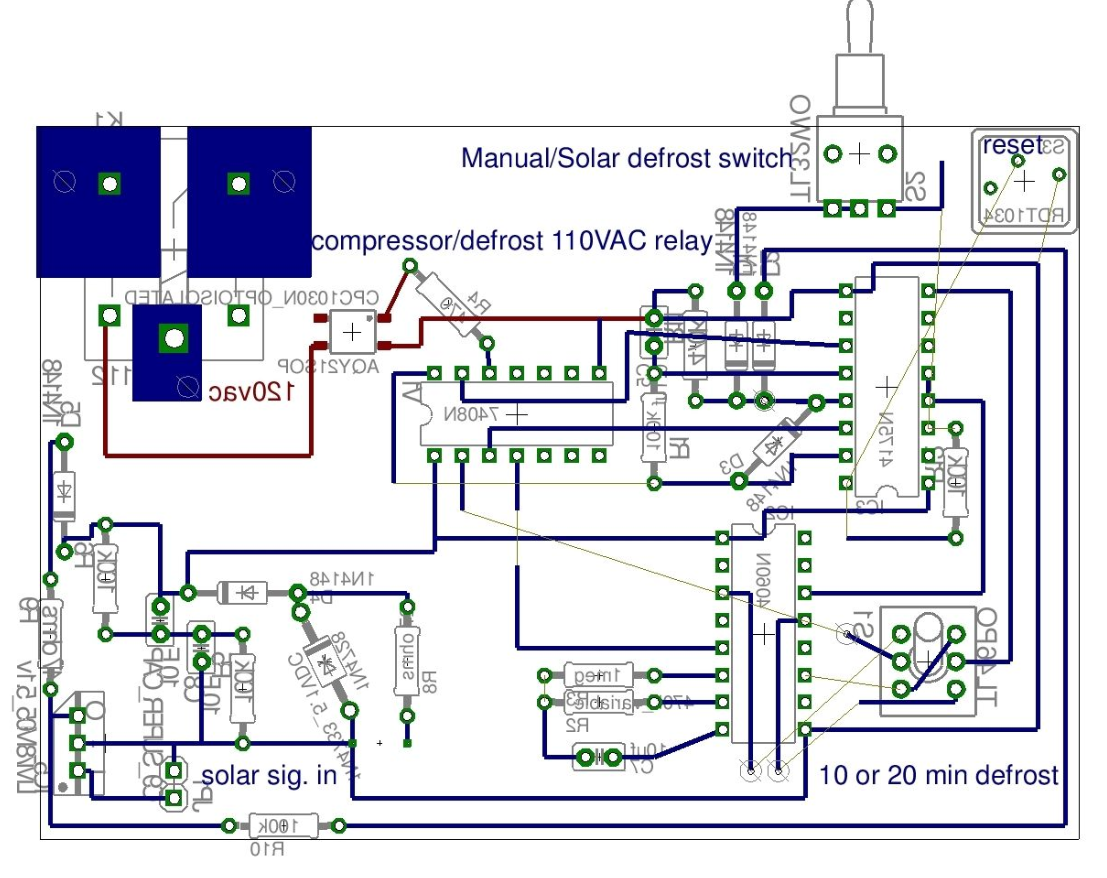

FridgeTimer board layout.png
